Say goodbye to multimeters and cutting wires

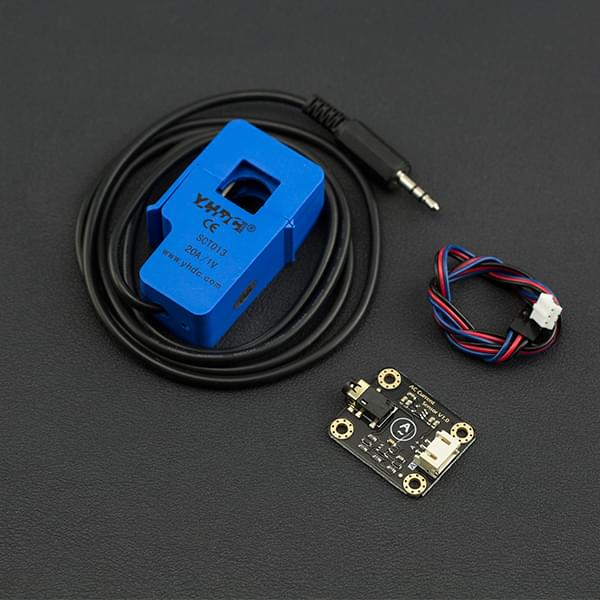

Designed for convenience and efficiency, this sensor eliminates the need for complicated setups or invasive procedures. Simply attach the sensor to the AC line, and it will seamlessly detect and measure the current flow.
This sensor is a part of gravity series by DFRobot
DFRobot Gravity Series is a high quality open-source, modular, plug and play electronics toolkit for everyone to create anything easily. Gravity Series allows users of any skill level to easily connect and mix to realize ideas or develop projects.
Specification
Non-contact measurement, high safety
Multiple ranges for various measurement scenarios
Compatible with 3V3/5V micro-controller
AC Current Signal Conversion Module
Input Voltage (VCC): 3.3V-5.5V
Interface: Gravity Analog (PH2.0-3P，analog voltage output 0.2-2.8V DC)
AC Voltage Input Range: 0-1V (AC RMS)
Relative Error: ±4%
Dimension: 32 × 27 mm /1.26 × 1.06 in
Weight: 5g
Open Type AC Transformer Probe
AC Current Range: 0-10 A
Signal Output (standard Φ3.5mm 3P plug): 0-1V AC voltage, linear corresponding range 0-10A
Accuracy: ±1%
Non-linearity: ≤±0.2%
Frequency Range: 50Hz ~ 1kHz
Cable Length: 1m
Working Temperature: -25 ℃ ~ +70 ℃
Opening Size: 13 × 13 mm / 0.51 × 0.51 in
Weight: 50 g
Tutorials
Official Wiki: https://wiki.dfrobot.com/Gravity_Analog_AC_Current_Sensor__SKU_SEN0211
